Introduction

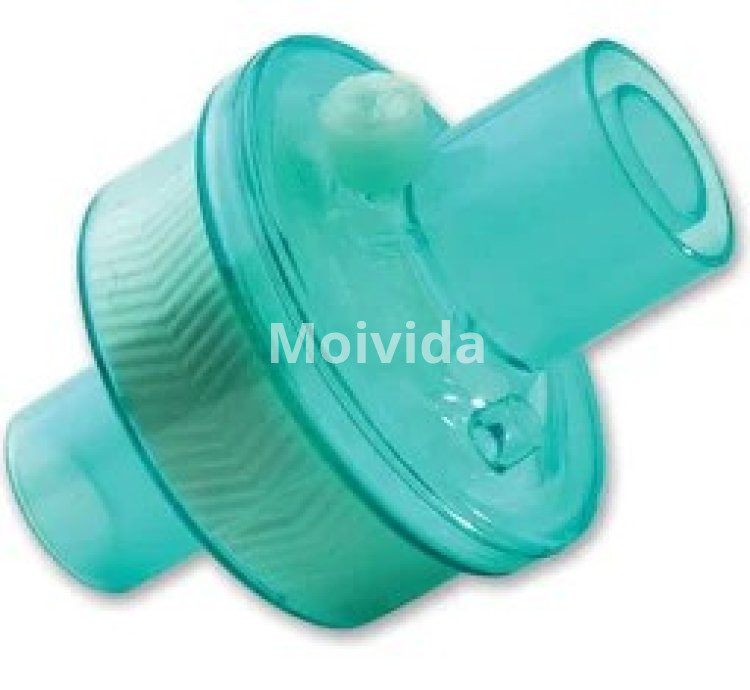

The Medline High-Efficiency Filtered Heat & Moisture Exchanger (HMEF) is a critical accessory designed to provide passive airway humidification and high-efficiency filtration in respiratory circuits. With bacterial filtration efficiency (BFE) and viral filtration efficiency (VFE) of approximately 99.99%, it helps protect both patients and healthcare environments from airborne pathogens while maintaining moisture and temperature in inhaled air. The product is available in straight housing style, with or without a gas sampling port, and packaged in bulk cases of 50. It is suited for use in ventilators, anesthesia machines, transport ventilators, and other respiratory support systems.

Features

Very High Filtration Efficiency
Offers ~99.99% bacterial filtration and viral filtration efficiencies (BFE / VFE), reducing infection risk.
Passive Heat & Moisture Exchange
Recycles heat and moisture from exhaled air to humidify and warm inhaled air, minimizing airway dryness.
Straight Housing / Optional Gas-Sampling Port
Available in straight design; some variants include a gas sampling port with tethered cap, allowing monitoring without disrupting circuit.
Latex-Free Material
Manufactured with latex-free plastics to reduce allergic reaction risks.
Translucent Housing
Allows visual inspection for secretions or obstructions.
Wide Patient & Tidal Volume Range
Usable across a broad spectrum of patients (universal/adult/pediatric) and works with tidal volumes generally in the range of ~120-1500 mL.

Benefits & Use Cases

Benefits

Enhances patient safety by filtering bacteria & viruses with high efficiency.
Maintains airway moisture and temperature, reducing discomfort, risk of mucosal damage.
Simplifies circuits with passive humidity—no power or additional heating needed.
Visual housing helps detect blockages early.
Bulk packaging reduces per-unit cost in high-use settings.

Use Cases

ICU ventilator circuits: protecting patients and ventilator system from pathogens.
Anesthesia during surgery: maintaining airway moisture while controlling sterility.
Patient transport or ambulance use: single-use, high efficiency filters ensure safe humidification in portable circuits.
Home/in clinic ventilator or noninvasive ventilation users needing filtered HME for infection control.

Technical Specifications

Specification	Value
Brand / Model	Medline High-Efficiency Filtered HMEF
Filter Efficiency	BFE ~99.99%, VFE ~99.99%
Housing Type	Straight, optionally with gas sampling port
Material	Latex-free medical-grade plastic
Patient Type	Adult / Pediatric / Universal
Tidal Volume Range	~120-1500 mL
Port	Some variants include gas sampling port with cap
Use Duration	Disposable, single-patient use; change regularly per hospital protocol
Packaging	Case of 50 units

Comparison with Alternatives

Feature	Medline High-Efficiency HMEF	Basic HME (no filter)	Heated Humidifier
Pathogen Filtration	Very high (≈99.99% BFE/VFE)	None or low	Varies, often lower in passive filters
Humidification	Passive via exhaled air	Passive	Active & controlled
Requirement of Power	None	None	Requires power supply
Cost	Moderate per use (due to high efficiency)	Lower	Higher (device cost + power)
Suitability	High risk infection settings, transport	Less demanding settings	When precise humidity control required

FAQs

Q1: How often should the Medline HMEF be replaced?
Typically after each patient use or per hospital protocol. If in continuous use, monitor for increased resistance or visible saturation and replace even before scheduled interval.

Q2: Does adding this HMEF affect ventilator settings?
There is slight added resistance and added dead space/humidity component. Usually negligible in adult patients, but in small pediatric patients or neonatal settings, might require adjustment.

Q3: Is the gas-sampling port necessary?
Only if you need to sample gases (CO₂, etc.). If not needed, the no-port variant is simpler and cheaper.

Q4: Are these filters sterile out of the box?
They are typically non-sterile but packaged to medical device standards; single-patient use helps maintain hygiene.

Q5: Does this work with all ventilation machines?
Yes, for machines allowing passive HME filters, using standard connector sizes/tubes. For machines with heated active humidification, or specific manufacturer recommendations, verify compatibility.

Call to Action

Protect patients and improve respiratory therapy with Medline High-Efficiency Filtered HMEFs. With nearly 99.99% bacterial & viral filtration, passive humidification, and optional sampling port, these filters are an essential part of safe, effective ventilator or anesthesia circuits. Order in bulk to maintain safety across your facility.
