Introduction

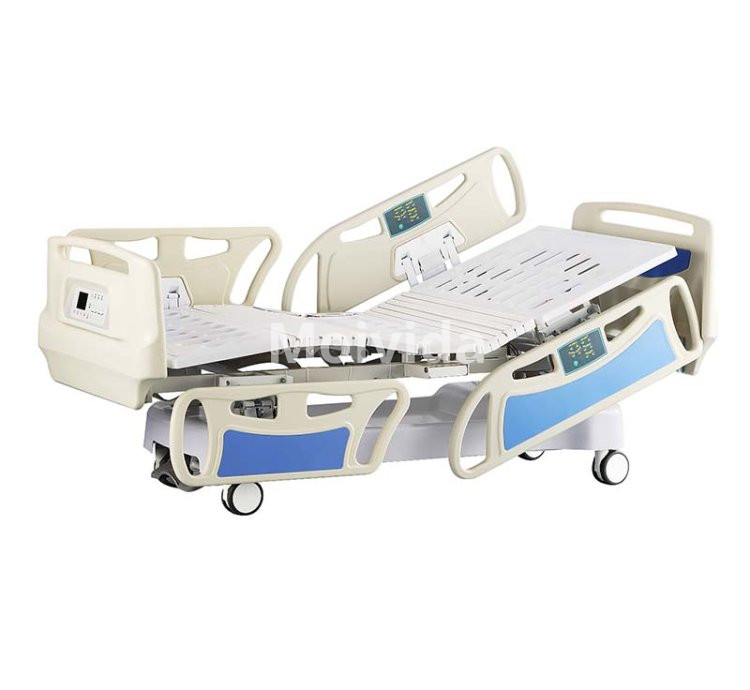

The Medik YA-D6-2 Electric ICU Bed is a state-of-the-art hospital bed designed for intensive care and advanced clinical environments. It combines five motorized functions with an X-ray translucent platform, embedded nurse controls, and multiple safety features to optimize patient care and caregiver workflow.

Features

Five motorized functions: backrest, footrest, hi-low, Trendelenburg, reverse Trendelenburg.
X-ray translucent full-length platform for imaging without moving the patient.
Four split ABS side rails with drop-down design for safety.
Embedded railing control and nurse panel with LED display.
Detachable ABS head and foot panels with easy lock system.
Central braking system with 150 mm wheels and bumper castors.
Auto-regress system reduces abdominal pressure during backrest adjustment.
Auto-counter prevents patient sliding.
Manual and electric CPR functions.
Optional weighing scale, bed-exit alarm, steering wheel, and oxygen tank holder.

Benefits & Use Cases

Benefits

Supports high-dependency patients with advanced motorized functions.
Reduces patient transfers with X-ray translucent platform.
Improves safety with embedded nurse control and side rails.
Enhances caregiver efficiency and reduces manual effort.
Flexible configuration with optional accessories.

Use Cases

Intensive care units (ICUs).
Trauma and surgical recovery wards.
Emergency and critical care centers.
Premium private hospitals.
Long-term critical care and rehabilitation.

Technical Specifications

Parameter	Specification
Model	YA-D6-2
Functions	Backrest, Footrest, Hi-Low, Trendelenburg, Reverse Trendelenburg
Operation	Electric (embedded railing + nurse control panel)
Frame	Steel, epoxy powder coated
Panels	ABS detachable head & foot
Side Rails	Four split ABS, drop down
Castors	150 mm central brake with bumper
Overall Size	2200 × 1060 × 520–770 mm
Lying Size	1900 × 900 mm
Back Section	0–75°
Foot Section	0–40°
Trendelenburg	0–12°
Reverse Trendelenburg	0–12°
Load Capacity	225–250 kg
Motors	Jiechang (optional Linak/Timotion/Dewert)
Warranty	3 years frame, 1 year parts
Certificates	CE / ISO

Comparison with Alternatives

Feature	Medik YA-D6-2 ICU Bed	Standard 5-Function ICU Bed	3-Function Motorized ICU Bed
Functions	Backrest, Footrest, Hi-Low, Trendelenburg, Reverse Trendelenburg	Same	Backrest, Knee, Hi-Low
X-Ray Platform	Yes, full-length	No	No
Nurse Control Panel	Embedded with LED	Basic wired remote	Wired remote
CPR	Manual + Electric	Manual only	None
Load Capacity	225–250 kg	200+ kg	180–200 kg
Optional Features	Weighing scale, exit alarm, oxygen holder	Limited	None
Best Use	Advanced ICUs, trauma care	General ICUs	Standard wards

FAQs

Q1: Does the YA-D6-2 support X-ray imaging?
Yes, it has a full-length X-ray translucent platform.

Q2: How many functions does the bed have?
It has five electric functions including Trendelenburg and reverse Trendelenburg.

Q3: Does it have CPR support?
Yes, both manual and electric CPR functions are included.

Q4: What is the load capacity?
It supports up to 225–250 kg.

Q5: What are the optional accessories?
Weighing scale, bed exit alarm, oxygen tank holder, and steering wheel function.

Call to Action

Equip your ICU with the Medik YA-D6-2 Electric Hospital Bed. With advanced features like X-ray translucency, embedded nurse control, and patient safety functions, it is the ultimate solution for critical care environments. Order today for cutting-edge ICU care

Check out our Fully Automatic beds for premium motorised hospital-grade bed support.
Discover our 5-Function beds if you want adjustable posture and enhanced care options.
Browse our 3-Function beds for adjustable back, leg and height support at a simpler level.
Pair your bed with hospital bed mattresses for added cushioning and comfort during recovery or long-term care.

Disclaimer

The product details and images are sourced from Medik-Medical.com and provided for reference only. Actual specifications, features, and pricing may vary. Buyers should confirm details directly with the supplier before purchase.
