Introduction

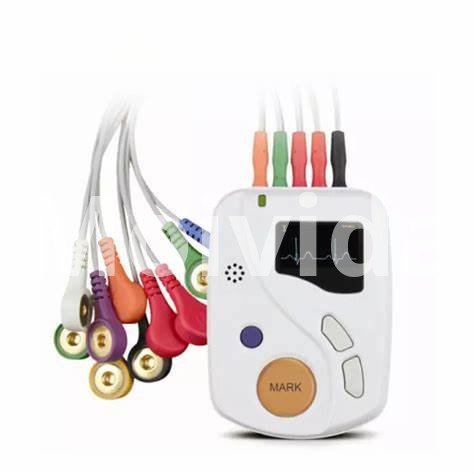

The CONTEC TLC6000 ECG Holter Monitor is a high-performance ambulatory monitoring device designed for comprehensive cardiac assessment. Supporting 12 simultaneous leads and up to 48 hours of continuous recording, it is widely used for detecting intermittent arrhythmias, monitoring post-MI patients, and evaluating heart rate variability. Lightweight and portable, it provides advanced diagnostics in a compact form factor.
Features
-
12-Lead ECG Recording
Captures all 12 standard ECG leads for complete cardiac assessment. -
Extended Monitoring
Supports continuous recording for up to 48 hours with high-capacity batteries. -
Arrhythmia & HRV Analysis
Identifies premature beats, atrial fibrillation, long intervals, and provides HRV reports. -
Pacemaker Compatibility
Detects and analyzes pacing modes such as AAI, VVI, and DDD. -
Risk Stratification Tools
Includes HRV, HRT, T-wave alternans, QT dispersion, VCG, and VLP modules. -
OLED Display & Event Marking
Allows patients to mark symptoms during recording for targeted review. -
USB & TF Card Storage
Supports data transfer via USB 2.0 and removable memory up to 2 GB. -
Compact & Lightweight
Small size and low weight ensure comfort during long-term wear. -
Low Noise & High Sensitivity
Provides clean signals with minimal artifacts for accurate analysis.
Benefits & Use Cases
Benefits
-
Detects arrhythmias missed on short-term ECG.
-
Provides extended recording with high diagnostic yield.
-
Lightweight, easy to carry for ambulatory monitoring.
-
Offers comprehensive diagnostic modules beyond standard Holters.
-
Improves patient management with risk assessment tools.
Use Cases
-
Patients with palpitations, dizziness, or unexplained fainting.
-
Post-myocardial infarction monitoring.
-
Long-term follow-up for chronic cardiac patients.
-
Drug therapy monitoring for arrhythmia management.
-
Cardiology departments and diagnostic labs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Lead Mode | 12 standard ECG leads |
| Recording Duration | Up to 48 hours |
| Sampling Accuracy | 12-bit |
| Noise | ≤ 50 µV (p-p) |
| CMRR | ≥ 60 dB |
| Low-Frequency Time Constant | ≥ 3.2 seconds |
| Polarization Voltage | ±300 mV |
| Minimum Measurable Signal | 50 µV p-p |
| Interface | USB 2.0, TF card (up to 2 GB) |
| Power Supply | High-energy battery |
| Dimensions | 80.5 × 59.5 × 22 mm |
| Weight | ~61.5 g (without batteries) |
| Safety Type | Type B, internally powered |
| Display | OLED |
| Standard Accessories | 12-lead cables, electrodes, USB cable, TF card, carry pouch, software |
Comparison with Alternatives
| Feature | CONTEC TLC6000 | CONTEC TLC9803 | Premium 12-Lead Holter |
|---|---|---|---|
| Lead Coverage | 12 leads | 3 leads | 12 leads |
| Recording Duration | 48h | 24h | 48h+ |
| Risk Analysis | HRV, HRT, TWA, QTD | HRV, HRT, TWA | Full |
| Pacemaker Support | Yes | Yes | Yes |
| Size/Weight | Very compact | Compact | Larger |
| Cost | Mid-range | Moderate | High |
FAQs
Q1: How long can it record continuously?
Up to 48 hours with a high-energy battery.
Q2: Is it compatible with pacemaker patients?
Yes, it can analyze common pacing modes.
Q3: Can patients mark symptoms?
Yes, the OLED screen allows event marking during use.
Q4: Is the software included?
Yes, analysis and reporting software is bundled with the device.

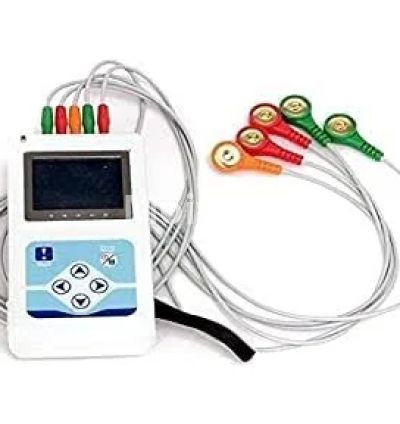

Q5: What makes TLC6000 different from TLC9803?
TLC6000 supports 12 leads and 48-hour monitoring, while TLC9803 is a 3-lead 24-hour model.
Call to Action
Upgrade your diagnostic capabilities with the CONTEC TLC6000 ECG Holter Monitor — a powerful, lightweight, and advanced solution for arrhythmia detection and comprehensive cardiac monitoring.
| Product Location | India |
