Introduction

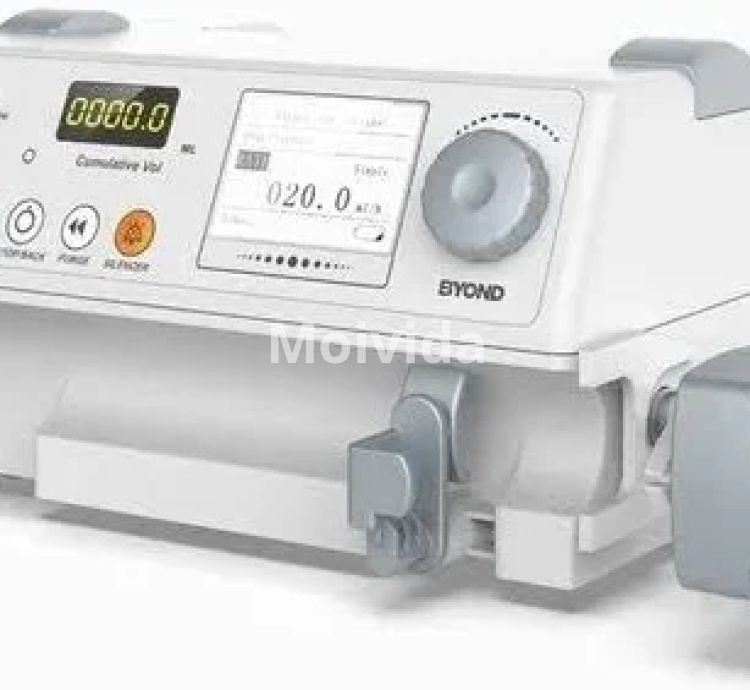

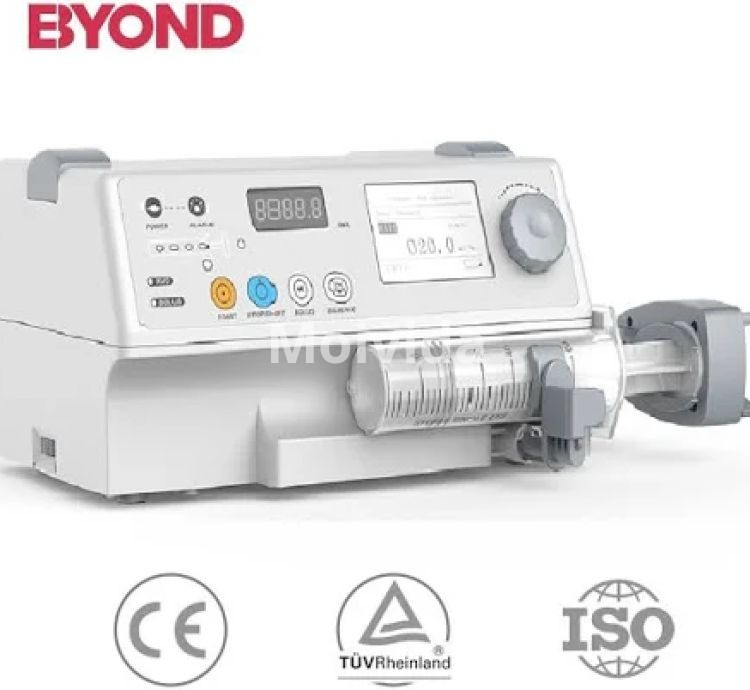

The Byond BYZ-810 Syringe Pump is an intelligent micro-infusion system engineered to deliver consistent drug administration with high precision. Built with modern safety protocols, audible voice alarms, and a user-friendly interface, it supports both continuous and intermittent infusion modes — making it suitable for ICUs, operating theatres, and general wards.

Features

Human Voice Alarm System: Provides real-time voice alerts for occlusion, completion, and malfunction events.
Automatic Syringe Identification: Detects syringe brand and capacity for calibration accuracy.
High-Precision Injection Rate: Step-motor technology guarantees stable flow with minimal pulsation.
Large Digital Display: LED + LCD screen shows infusion parameters, rate, and time.
Adjustable Infusion Modes: Continuous, volume/time-based, and bolus infusion.
Anti-Bolus Mechanism: Prevents sudden fluid surge after occlusion release.
Compact Design: Lightweight build suitable for tabletop or pole-mount use.
Data Memory Function: Retains settings in case of power failure.
Long Battery Backup: Rechargeable lithium battery allows portable operation.
Wide Clinical Application: Ideal for anesthesia, pediatric care, ICU, and general infusion therapy.

Benefits & Use Cases

Benefits

Ensures precise and safe drug infusion with audio-visual alerts.
Easy to operate for both hospital staff and home caregivers.
Reduces user error via automatic syringe calibration.
Offers dependable performance at a competitive price.
Compact design improves mobility and space efficiency.

Use Cases

Intensive Care Units (ICU)
Operation Theatres (OT)
Emergency Departments
Pediatric and Neonatal Infusion
Oncology and Long-Term Medication Therapy

Technical Specifications

Parameter	Specification
Brand	Byond
Model	BYZ-810
Pump Type	Syringe Infusion Pump
Display	LED numeric + LCD parameter screen
Flow Rate Range	0.1 – 1200 mL/h
Accuracy	± 2 %
Syringe Sizes Supported	5 mL – 60 mL (auto detection)
Alarm System	Human Voice + Visual LED Indicators
Infusion Modes	Continuous / Bolus / Time-Volume
Power Supply	AC 100 – 240 V / 50 – 60 Hz
Battery Type	Rechargeable Lithium
Battery Backup	Up to 8 hours (at 25 mL/h)
Dimensions (L × W × H)	290 × 210 × 130 mm (approx.)
Weight	2.2 kg (approx.)
Occlusion Pressure Levels	3 adjustable settings
Memory Retention	Yes (auto memory on power failure)
Material	ABS medical-grade plastic
Country of Origin	China
Warranty	1 Year (manufacturer warranty)

Comparison with Alternatives

Feature	Byond BYZ-810	Fresenius Agilia MP	B. Braun Perfusor Space
Flow Range	0.1 – 1200 mL/h	0.1 – 1200 mL/h	0.1 – 1000 mL/h
Accuracy	± 2 %	± 2 %	± 2 %
Alarm System	Voice + Visual	Visual Only	Visual Only
Syringe Detection	Auto	Auto	Auto
Display	LED + LCD	LCD	OLED
Battery Backup	8 h	6 h	6 h
Price (INR)	₹ 23,000	₹ 75,000	₹ 1.25 Lakh
Best For	General / ICU	Critical Care	Advanced Infusion Network

FAQs

Q1: Does the Byond BYZ-810 support all standard syringes?
Yes — it automatically detects and calibrates most standard brands (5 mL – 60 mL).

Q2: Is there a voice alarm for occlusions and completion?
Yes — a Human Voice Alarm alerts users for occlusion, end of infusion, and other faults.

Q3: What is the battery backup duration?
Up to 8 hours on a full charge at standard flow rates.

Q4: Can it be used for pediatric infusion?
Yes — it offers fine rate adjustment and high precision for low-volume infusion.

Q5: What is the maximum infusion rate?
The pump supports a maximum rate of 1200 mL/h.

Call to Action

Enhance infusion accuracy and safety with the Byond BYZ-810 Syringe Pump — a cost-effective solution for clinics, hospitals, and ICUs. Experience digital precision with voice alerts and auto syringe recognition today.
